Coax cable assemblies : Coax cables + connectors
More than 1500 references to ensure the proper selection cable+connectors

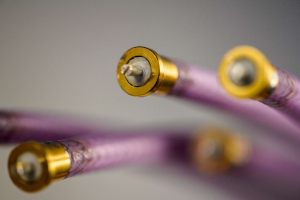

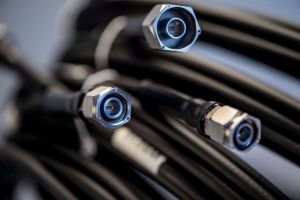

COAX CABLE ASSEMBLIES: the guarantee of reliability and robustness
ATEM offers a variety of coaxial cables for optimal signal transmission:
- high flexibility
- ultra low loss
- phase matching
- phase stable with flexure and temperature
- power handling
- high temperature
- semi-rigid and conformable cables
- low smoke halogen free (LSZH)
In order to offer solutions to your most complex systems, we customize your purchase and control each coax cable assembly.

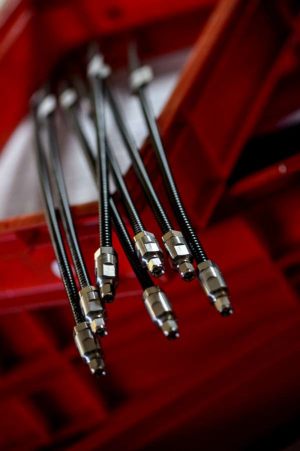

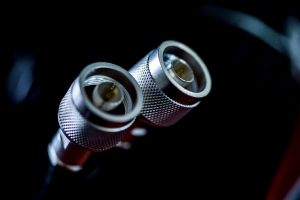

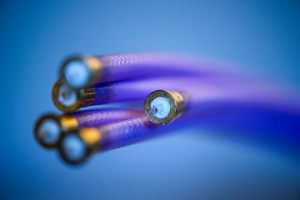

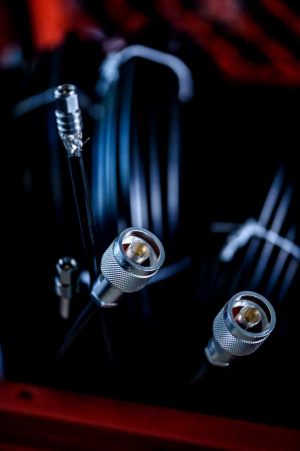

We offer coax cable assemblies to transmit data over long distances with ultra low loss but also technical harnesses such as strechable, de-icing cables.We also treat all the classic RF connectors: N, SMA, SMB, SMP, 2.9, 2.4 ...
We assemble to order.
We have the ability to develop specific connectors if needed.
We add, according to the environmental constraints, a protective sheath to our cords (anti-corrosion, EMI, anti-crushing, UV protection ...)
In parallel with our core business which is the manual assembly of coaxial cables, at your request we design hi-tech wired cables for value added services.
This is the case in commercial air operations where we offer specific harnesses for cockpits. (stretchable, cold weather resistant...)
Non-exhaustive list of cables with their detailed characteristics
Technical coax cables
| FREQUENCY+B2:I19 | Coax Cable Code | Coax Cable Ref | Main Technical Characteristics | Technical Characteristics | Ø coax cable |
|---|---|---|---|---|---|
| DC - 5,6GHz | x36 | A92617-013 | Low loss - 50 ohms - Flexible - Stranded Center Conductor | Indoor/Outdoor | Ø 5,10mm |
| x110 | A91414-013 | Low loss -50 ohms - Robusteness - Solid Center Conductor | Outdoor, Power handling | Ø 10,29mm | |
| x111 | A91628-013 | Low loss - 50 ohms - Robusteness - Stranded Center Conductor | Flexibility - Outdoor, Power handling | Ø 10,29mm | |
| X112 | A91933-013 | Low loss -50 ohms - Robusteness - Solid Center Conductor | Outdoor, Power handling | Ø 6,10mm | |
| X115 | A91658-013 | Low loss -50 ohms - Robusteness - Solid Center Conductor | Indoor/Outdoor, LSZH outer jacket | Ø 10,29mm | |
| x117 | B91131-013 | Ultra low loss - 50 ohms - Robusteness -Âme monobrin | Outdoor / Watertight, Power handling | Ø 22,10mm | |
| DC-10GHz | x113 | A91978-013 | Low loss -50 ohms - Robusteness - Solid Center Conductor | Outdoor, Power handling | Ø 10,29mm |
| x120 | B91375-013 | Ultra low loss - 50 ohms - Robusteness - Solid Center Conductor | Outdoor, Power handling | Ø 14,99mm | |
| DC-12GHz | X71 | A92830-005 | Ultra low loss - 50 ohms - Robusteness - Stranded Center Conductor | Power handling, Compliant FAR 25.853 Appendix F, Stability with flexure | Ø 12,20mm |
| x73 | B92205-005 | Ultra low loss - 50 ohms - Robusteness - Stranded Center Conductor | PU outer jacket - Retarded Flame, Power handling, Stability with flexure | Ø 12,70mm | |
| DC - 18GHz | x56 | A92956-069 | Ultra low loss - 50 ohms - Robusteness - Stranded Center Conductor | Stability with flexure and temperature | Ø 7,90mm |
| x75 | A91011-013 | Low loss - 50 ohms -Flexible - Solid Center Conductor | Robusteness | Ø 3,05mm | |
| x80 | A92618-013 | Low loss - 50 ohms -Flexible - Solid Center Conductor | Robusteness | Ø 4,95mm | |
| x84 | A92328-013 | Low loss - 50 ohms -Flexible - Solid Center Conductor | Robusteness , Stability with flexure and temperature | Ø 6,35mm | |
| x98 | A92828-005 | Ultra low loss - 50 ohms - Robusteness | Robusteness | Ø 7,80mm | |
| x118 | B92301-005 | Ultra low loss -50 ohms - Robusteness - Stranded Center Conductor | same characteristics with x98 with a better flexibility | Ø 7,80mm | |
| x152 | B92614-041 | Ultra low loss - 50 ohms - Flexible - Solid Center Conductor | Aeronautics | Ø 7,70mm | |
| DC - 26,5GHz | x55 | A92929-069 | Low loss - 50 ohms - Flexible - Stranded Center Conductor | Stability with flexure and temperature | Ø 5,00mm |
| x82 | A92398-013 | Low loss - 50 ohms - Flexible - Solid Center Conductor | Robusteness | Ø 4,57mm | |
| x97 | A92398-013 | Low loss - 50 ohms - Flexible - Solid Center Conductor | Stability with flexure | Ø 5,90mm | |
| DC - 32GHz | x74 | B92356-005 | Low loss - 50 ohms - Flexible - Solid Center Conductor | mechanical protection jacket | Ø 6,60mm |
| x96 | A92806-005 | Low loss - 50 ohms - Flexible - Solid Center Conductor | Stability with flexure | Ø 4,82mm | |
| x126 | B92512-005 | Low loss - 50 ohms - Flexible - Stranded Center Conductor | LSZH outer jacket , Very flexible | Ø 5,54mm | |
| DC - 40GHz | x94 | A92804-005 | Ultra low loss - 50 ohms - Flexible - High frequency | Stability with flexure | Ø3,70mm |

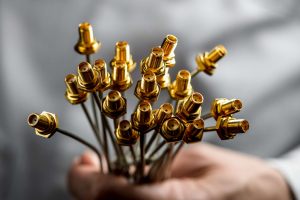

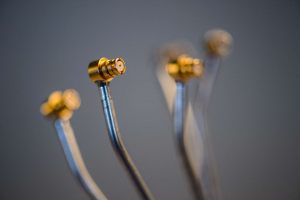

Semi-rigid coax cables
| FREQUENCY | Coax Cable Code | Coax Cable Ref | Main Technical Characteristics | Technical Characteristics | Ø coax cable |
|---|---|---|---|---|---|
| DC-12GHz | x61 | A92146-095 | 50 ohms - Ultra Formable | good alternative to semi-rigid | Ø 2,20mm |
| x85 | A92315-095 | 50 ohms - FEP outer jacket | good alternative to semi-rigid | Ø 4,15mm | |
| DC-18GHz | x38 | A94081-084 | 50 ohms - Semi Rigid - Plated copper | hand-formable stability | Ø 3,16mm |
| x41 | A93038-069 | 50 ohms - Semi Rigid - Silver plated | hand-formable stability | Ø 3,58mm | |
| x62 | A92144-095 | 50 ohms - Semi Rigid - Ultra Formable | test benches | Ø 3,58mm | |
| x64 | A94283-069 | 50 ohms - Semi Rigid - Plated Aluminium | Prototypying | Ø 3,58mm | |
| x85 | A92315-084 | 50ohms - Flexible - FEP outer jacket | good alternative to semi-rigid, test benches - prototypying | Ø 4,15mm | |
| x44 | A94232-069 | 50 ohms - Semi Rigid - Plated copper | hand-formable stability | Ø 6,35mm | |
| x54 | A94507-084 | 50 ohms - Semi Rigid - Plated Aluminium | Prototypying | Ø 6,35mm | |
| DC-40GHz | x45 | A94045-069 | 50 ohms - Semi Rigid - Plated copper | hand-formable, climatic chamber to fix the, state of the cable | Ø 2,20mm |
| x60 | A94047-084 | 50 ohms - Semi Rigid - Plated copper | hand-formable stability, thin diameter | Ø 1,19mm | |
| x61 | A92147-084 | 50 ohms - Semi Rigid - Ultra Formable | test benches | Ø 2,20mm | |
| x63 | A94300-084 | 50 ohms - Semi Rigid - Plated Aluminium | Prototypying | Ø 2,20mm | |
| x86 | A92316-054 | 50 ohms -Flexible -FEP outer jacket | Good alternative to semi-rigid, test benches - prototypying | Ø 2,64mm |

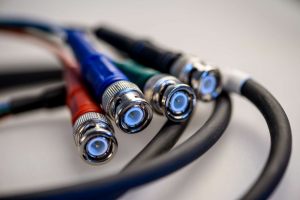

RG coax cables
| FREQUENCY | Coax Cable Code | Coax Cable Ref | Main Technical Characteristics | Technical Characteristics | Ø coax cable |
|---|---|---|---|---|---|
| DC - 4GHz | x16 | A90083-017 | 50 ohms - Robusteness - Stranded center conductor | Double braid | Ø 10,30mm |
| DC - 8GHz | x08 | A91051-017 | 50 ohms - Flexible - Solid center conductor | Double braid | Ø 4,95mm |
| x08 | B96640-089 | 50 ohms - Flexible - Solid center conductor | Double braid, Aeronautics | Ø 4,95mm | |
| x09 | A91003-017 | 50 ohms - Flexible - Solid center conductor | Double braid | Ø 5,40mm | |
| x29 | A91237-054 | 50 ohms - Stranded center conductor | Double braid | Ø 4,95mm | |
| DC - 12GHz | x04 | A90071-017 | 50 ohms - Flexible - Solid center conductor | Single braid | Ø 2,49mm |
| x25 | A91151-089 | 50 ohms - Stranded center conductor | Double braid, Aeronautics | Ø 2,60mm | |
| x18 | A91095-017 | 50 ohms - Robusteness - Stranded center conductor | Double braid | Ø 10,80mm |
Power handling coax cables
| FREQUEN+F5+B2:G13 | Coax Cable Code | Coax Cable Ref | Main Technical Characteristics | Technical Characteristics | Ø coax cable |
|---|---|---|---|---|---|
| DC - 5,6GHz | x110 | A91414-013 | 50 ohms - Robusteness - Solid center conductor | Outdoor | Ø 10,29mm |
| x111 | A91628-013 | 50 ohms - Robusteness - Stranded center conductor | Flexible, Outdoor | Ø 10,29mm | |
| X112 | A91933-013 | 50 ohms - Robusteness - Solid center conductor | Outdoor | Ø 6,10mm | |
| X115 | A91658-013 | 50 ohms - Robusteness - Solid center conductor | Indoor/Outdoor, LSZH outer jacket | Ø 10,29mm | |
| x117 | B91131-013 | 50 ohms - Robusteness | Outdoor, Watertight | Ø 22,10mm | |
| DC - 8GHz | x133 | B96343-053 | 50 ohms - Robusteness - Corrugue cable - low loss | LSZH outer jacket | Ø 16,00mm |
| DC-10GHz | x113 | A91978-013 | 50 ohms - Robusteness | Outdoor | Ø 10,29mm |
| x120 | B91375-013 | 50 ohms - Robusteness | Outdoor | Ø 14,99mm | |
| DC-12GHz | X71 | A92830-005 | 50 ohms - Robusteness - Stranded center conductor | Compliant FAR 25.853 Appendix F, Stability with flexure | Ø 12,20mm |
| x73 | B92205-005 | 50 ohms - Robusteness - Stranded center conductor | Gaine extérieur PU - Flame Retardant, Stability with flexure | Ø 12,70mm | |
| DC-15GHz | x151 | B96612-032 | 50 ohms - Robusteness - Corrugue cable - low loss | LSZH outer jacket | Ø 9,00mm |
